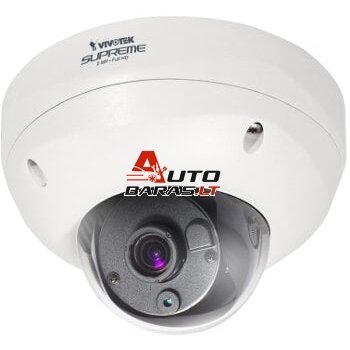

Vivotek FD8362E

System

CPU: Multimedia SoC

Lens

f=3~9 mm
F 1.2 (wide)
F 2.1 (tele)
auto iris
CS-mount
Removable IR-cut filter for day & night function
Remote Focus

Angle of View

31.7° ~ 93.0° (horizontal)
23.8° ~ 68.4° (vertical)
39.6°~118.9° (diagonal)

Shutter Time

1/5 ~ 1/32,000 sec

Image sensor

1/2.7" progressive scan CMOS in 1920x1080 Resolution

Minimum Illumination

0.08 Lux @ F1.2 ( typical )
0.001 Lux @ F1.2 ( B/W )

Video

Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1920x1080
MPEG-4: Up to 30 fps at 1920x1080
MJPEG: Up to 30 fps at 1920x1080

Interface:
Audio/Video output
NTSC/PAL video output switch

Image Settings

Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGC   AWB   AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced

Audio

Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio
Supports audio mute

Networking

10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X

Alarm and Event Management

Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection

On-board Storage

MicroSD/SDHC card slot
Stores snapshots and video clips

Security

Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection

Users

10 clients on-line monitoring at the same time

Dimensions

Ø: 173mm x 115 mm

Weight

Net: 1296 g

LED Indicator

System power and status indicator

Power

12V DC
24V AC
Power consumption: Max. 21.6 W (with heater)
802.3af compliant Power-over-Ethernet (Class 3)

Housing

Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing

Approvals

CE   C-Tick   FCC   LVD   VCCI

Operating Environments

Temperature: -40 ~ 55 °C (-40 ~ 131 °F)
Humidity: 90%

Viewing System Requirements

OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above

Installation, Management, and Maintenance

Camera angle adjustment:
Pan range: 350°
Tilt range: 80°
Rotate range: 350°
Installation Wizard 2
32-CH central management software
Supports firmware upgrade

Applications

SDK available for application development and system integration
