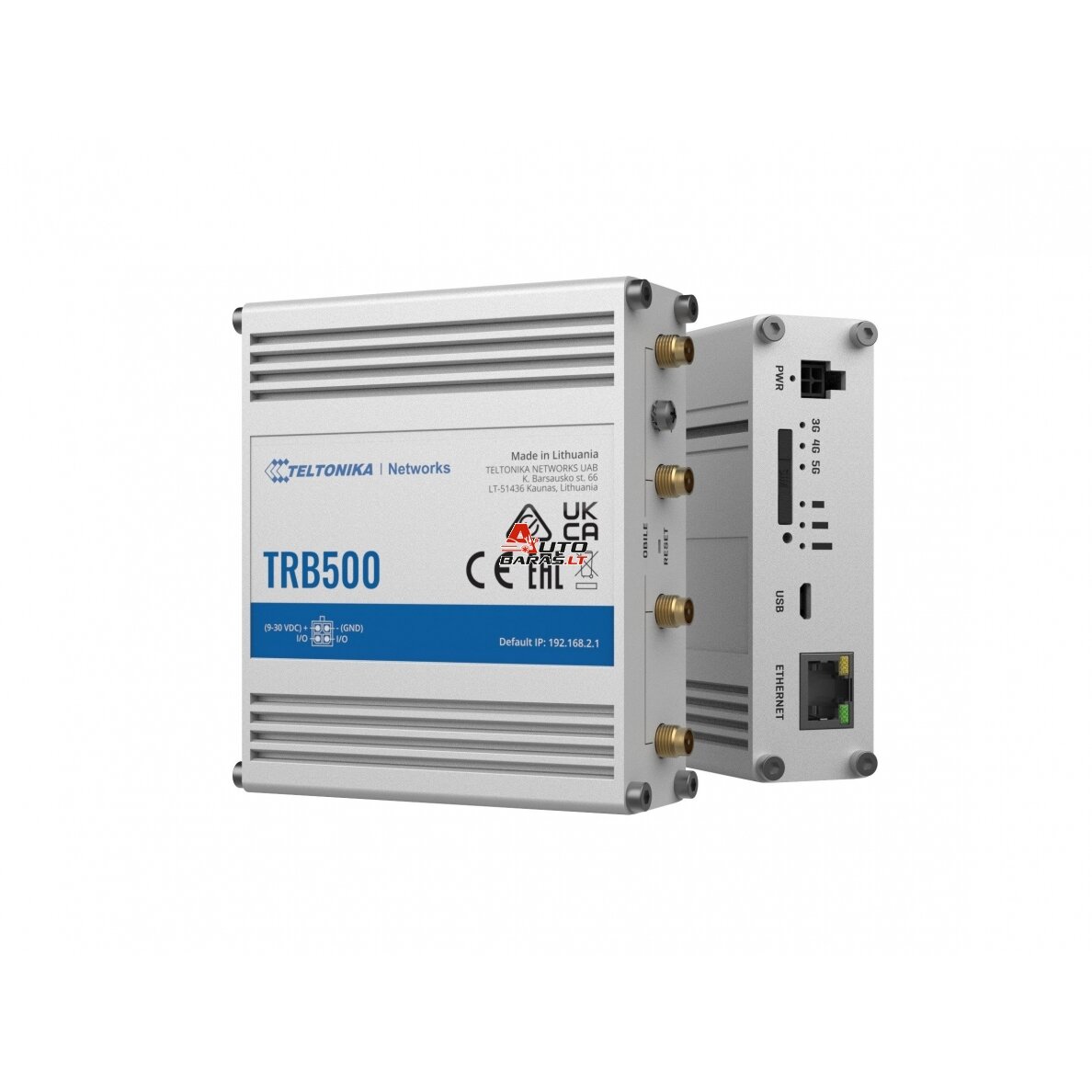

TELTONIKA pramoninė 5G tinklo sąsaja LTE TRB500

  • TELTONIKA pramoninė 5G tinklo sąsaja LTE TRB500

    Prekės kodas: LTETRB500
    Kaina 501.98
    Netinka kaina? Siūlyk savo!



    Prekės NETURIME arba ji yra UŽSAKOMA

    Sužinokite parašę mums užklausą dėl sąlygų ir termino, galbūt galime užsakyti.

    Jeigu prekė TIK užsakinėjama, tai sąlygos yra aprašytos žemiau prie prekės aprašymo

    • 5G pramoninė tinklo sąsaja
    • Aliuminis korpusas
    • Mobiliojo ryšio sparta iki 1 Gbps
    • Viena mažiausių rinkoje esančių 5G tinklo sąsajų
    • Atgalinis suderinamas su 4G (LTE CAT 20) ir 3G tinklo technologijomis
    Gamintojas
  • Prekių pristatymas/atsiėmimas

    • * Įprastai turimos prekės sandėlyje pristatomos nuo pasirinkto pristatymo būdo per ~1-2d.d.
    • * Užsakomos prekės ~2-4d.d.
    • * Dauguma prekių iš sandėlių Kaune galima atsiimti per ~10-30min I-V 8:00 - 18:00
    • * Į atsiėmimo punktus Kaune (Ringaudai arba Romainiai) prekės atvežiamos per ~1d.d I-VII 8:00 - 22:00
    •  (Populiariausias prekes turime atsiėmimo punktuose - teiraukitės telefonu/email/sms/viber/skype)
    •  Tel. +37062583994 | E-mail: info@AutoBaras.LT
    •  Plačiau: KONTAKTAI
    • Mobilus ryšys
    • Mobilus modulis5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
    • StatusasSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
    • SMS/CallSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
    • USSDSupports sending and reading Unstructured Supplementary Service Data messages
    • Juodasis/baltasis sąrašasOperator black/white list
    • Grupės valdymasBand lock, Used band status display
    • APNAuto APN
    • TiltasDirect connection (bridge) between mobile ISP and device on LAN
    • PerleidimasGateway assigns its mobile WAN IP address to another device on LAN
    • Tinklas
    • LAN1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
    • Internetas
    • Interneto protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
    • MaršrutasStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
    • Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
    • UgniasienėPort forwards, traffic rules, custom rules
    • DHCPStatic and dynamic IP allocation
    • DDNSSupported >25 service providers, others can be configured manually
    • SSHFSPossibility to mount remote file system via SSH protocol
    • Saugumas
    • AutentifikavimasPre-shared key, digital certificates, X.509 certificates
    • UgniasienėPre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
    • Įsilaužimo prevencijaDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    • VLANPort and tag-based VLAN separation
    • Mobiliųjų kvotų kontrolėSet up custom data limits for SIM >kortelė
    • WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
    • Prieigos kontrolėFlexible access control of TCP, UDP, ICMP packets, MAC address filter
    • VPN
    • OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
    • OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
    • GREGRE tunnel
    • IPsecIKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
    • PPTP, L2TPClient/Server services can run simultaneously, L2TPv3 support
    • SSTPSSTP client instance support
    • STUNNELProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
    • DMVPNMethod of building scalable IPsec VPNs
    • WireGuardWireGuard VPN client and server support
    • ZeroTierZeroTier VPN
    • Modbus TCP Slave
    • ID filtravimasRespond to one ID in range [1;255] or any
    • Nuotolinės prieigos leidimasAllow access through WAN
    • Pasirinktiniai registraiMODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
    • Modbus TCP master
    • Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
    • Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
    • MQTT gateway
    • GatewayAllows sending commands and receiving data from MODBUS Master through the MQTT broker
    • DNP3
    • Palaikomi režimaiTCP Master, DNP3 Outstation
    • Data iki serverio
    • ProtokolaiHTTP(S), MQTT, Azure MQTT, Kinesis
    • Stebėjimas ir valdymas
    • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
    • FOTAFirmware update from sever, automatic notification
    • SSHSSH (v1, v2)
    • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
    • CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
    • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    • MQTTMQTT Broker, MQTT publisher
    • SNMPSNMP (v1, v2, v3), SNMP trap
    • JSON-RPCManagement API over HTTP/HTTPS
    • MODBUSMODBUS TCP status/control
    • RMSTeltonika Remote Management System (RMS)
    • IoTPlatformos
    • Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
    • ThingWorxAllows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
    • CumulocityAllows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
    • Azure IoT HubCan send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
    • Sistemos Characteristikos
    • CPUSingle core ARM Cortex A7, 1.5 GHz
    • RAM256 MB (128 MB available for userspace)
    • FLASH saugykla512 MB (200 MB available for userspace)
    • Nustatymai
    • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
    • FOTAUpdate FW
    • RMSUpdate FW/configuration for multiple devices
    • Nustatymų įsiminimasUpdate FW without losing current configuration
    • Įrangos tinkinimas
    • Operacinė sistemaRutOS (OpenWrt based Linux OS)
    • KalbosBusybox shell, Lua, C, C++
    • Kūrėjo įrankiaiSDK package with build environment provided
    • Išėjimai/įėjimai
    • Configurable I/O2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 40 V detected as logic high. Open collector output, max output 30 V, 300 mA
    • Output controlHTTP POST/GET, Schedule
    • ĮvykiaiSMS, EMAIL
    • I/O jugglerAllows setting certain I/O conditions to initiate event
    • Sistemos parametrai
    • Jungtys4-pin industrial DC power socket
    • Įeinančios įtampos diapazonas9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max
    • Energijos sunaudojimasIdle: <3 W, Max <6 W
    • Fizinės sąsajos(PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
    • Tinklas1 x RJ45 port, 10/100/1000 Mbps
    • I/Os2 x Configurable I/O pins on 4-pin power connector
    • USB1 x Virtual network interface via micro USB
    • LED indikatoriai3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
    • SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
    • Sistemos parametrai1 x 4-pin DC power connector
    • Anntena4 x SMA for Mobile
    • PerkrovimasReboot/User default reset/Factory reset button
    • ĮžeminimasGrounding screw terminal
    • Fizinės specifikacijos
    • KorpusasAluminum housing
    • Dydis100 x 30 x 93,4 mm
    • Svoris241g
    • MontavimasDIN rail, Flat surface
    • Darbinė aplinka
    • Darbinė temperatūra-40 °C to 75 °C
    • Drėgmė10 % to 90 % non-condensing
    • IP reitingasIP30
