SCANGRIP ATEX EX-VIEW Galvos žibintas pakraunamas

Prekė yra užsakoma tik su išankstiniu apmokėjimu arba 50% užstatu - pristatymas iki mūsų ~1-2d.d. (visoje Lietuvoje ~2-4d.d.)

 3,8V, 1600mAh

Sensoriaus režimu lempa lengvai įjungiama/išjungiama dvigubos rankos judesiu

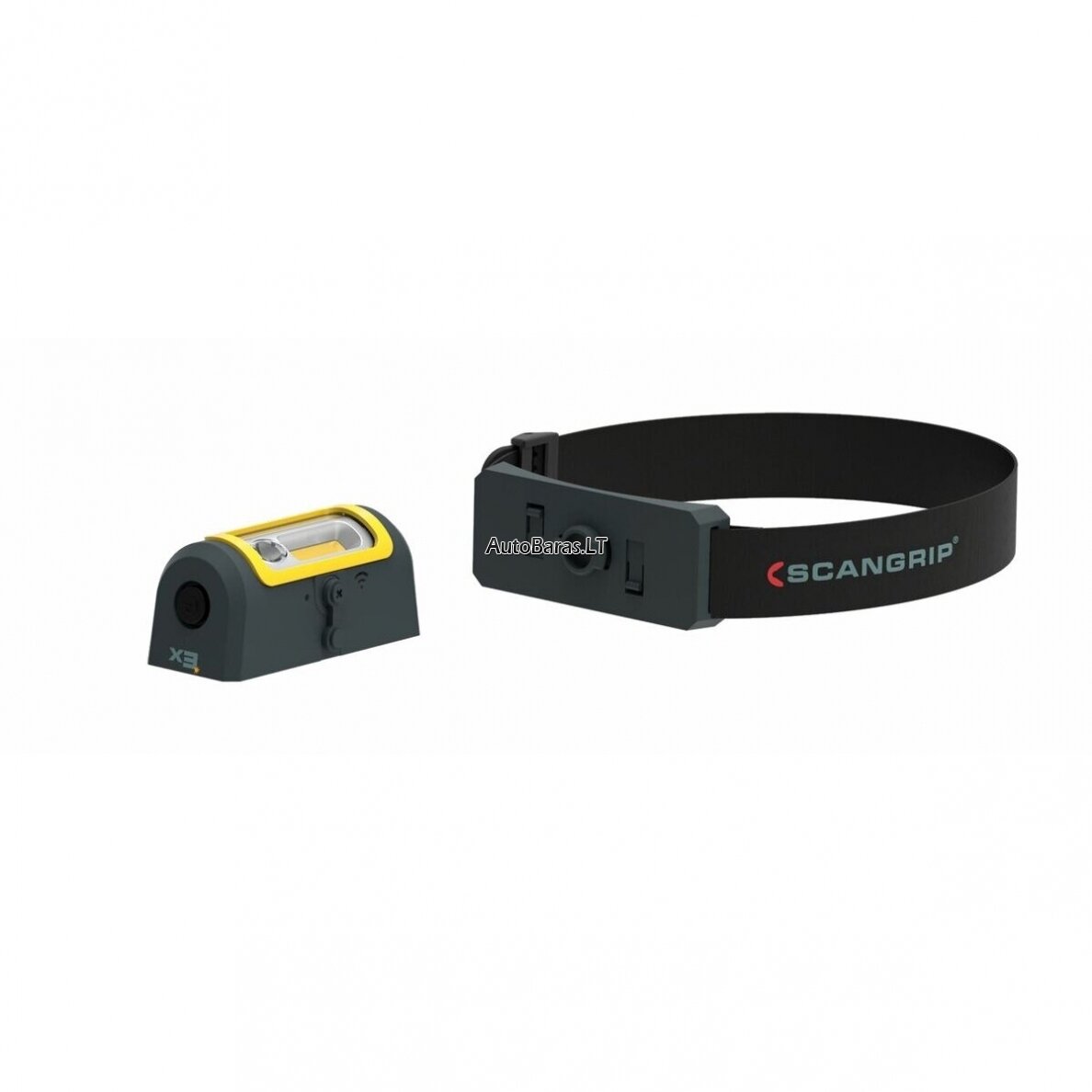

kaip papildoma funkcija, priekinį žibintą galima nuimti nuo diržo ir naudoti kaip rankinį žibintą
Degimo laikas: 2,5 / 3,5 val
Šviesos srautas: 100/200 lm

SCANGRIP’s EX PROOF line is made for hazardous atmospheres with explosion dangers. The explosion proof line is ideal for offshore work, the chemical industry, tank vehicles, refineries and many more. Long story short – the EX PROOF line is perfect for all industries where gas and dust are a safety risk.

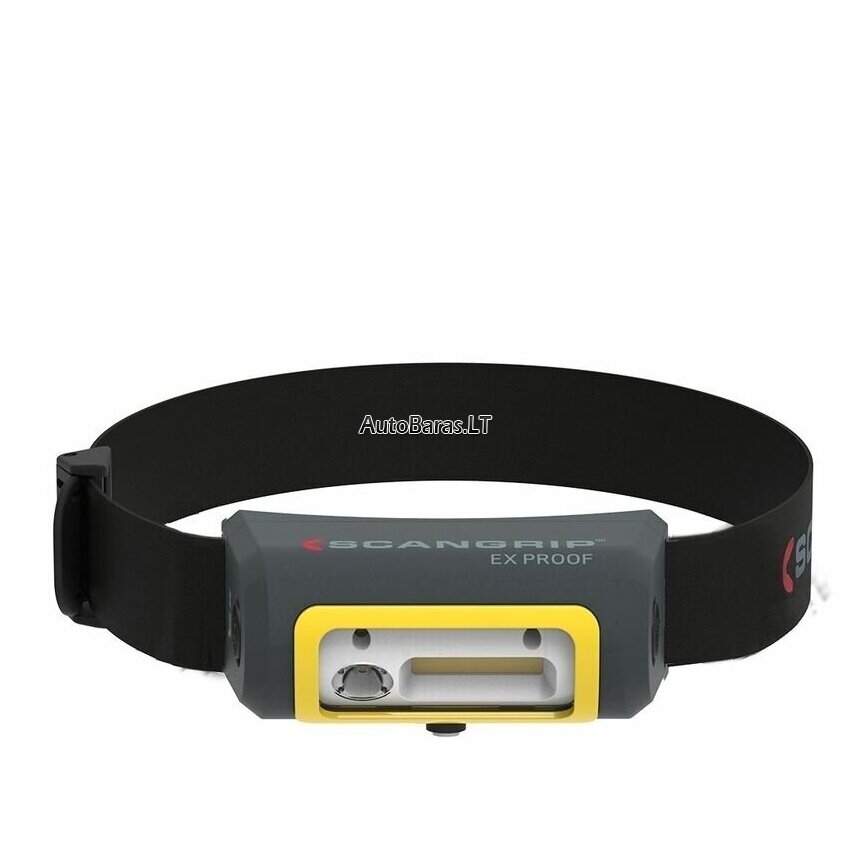

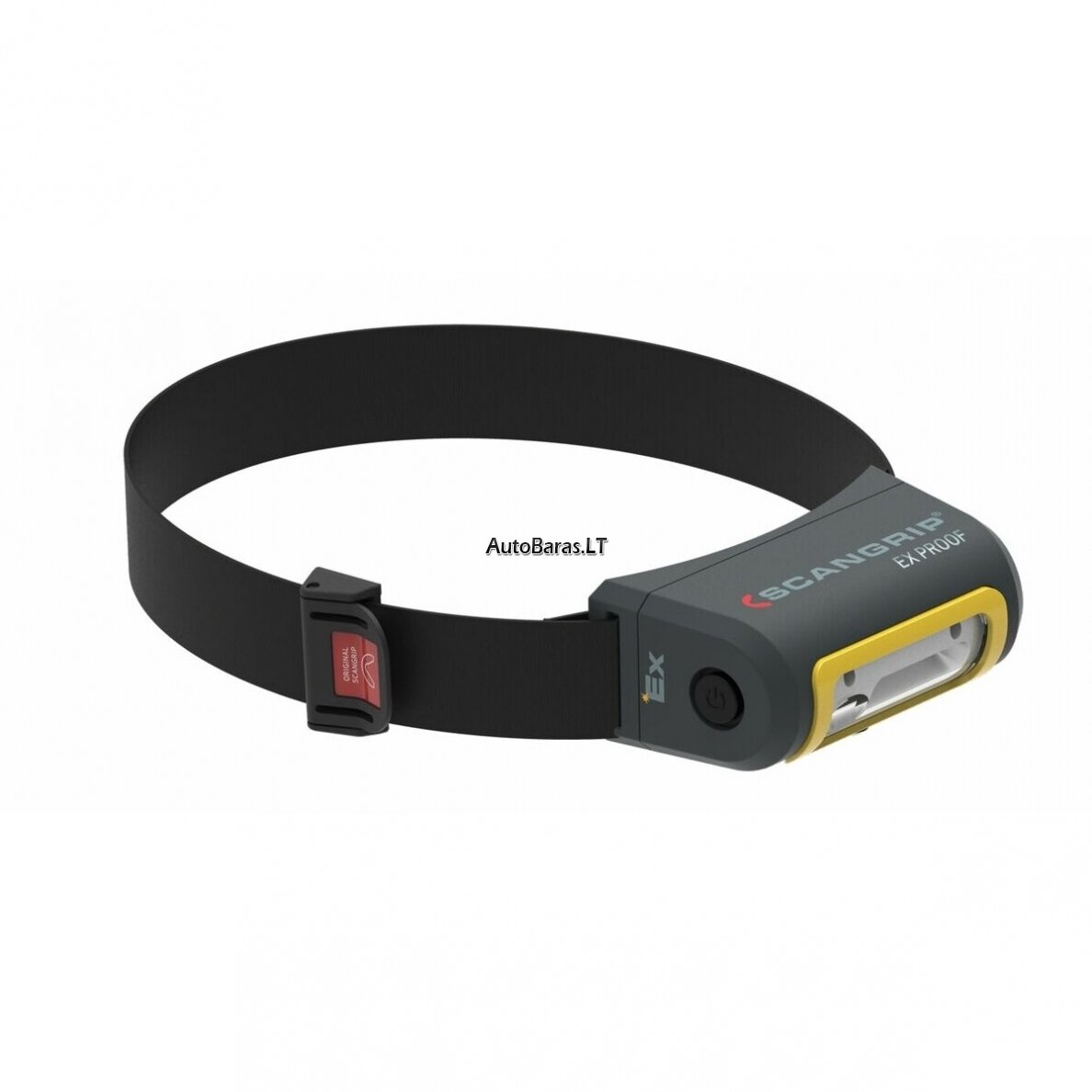

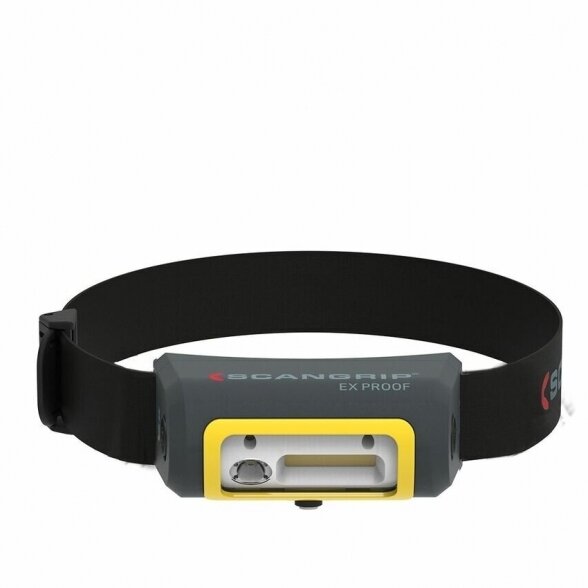

EX-VIEW is an extremely durable and remarkably lightweight explosion proof headlamp made for hazardous locations with explosion risk.

Supplied with the newest COB LED technology, the EX-VIEW provides an extremely powerful illumination which spreads the uniform light to the maximum and lightens up your entire field of view.

The design is ergonomic for a perfect, comfortable fit, and the woven band is strong and adjustable.

When set on sensor mode, EX-VIEW is turned on/off only by waving a hand in front of the lamp in a dual movement - even when wearing thick gloves. As an extra feature, the headlamp can be detached easily from the band and used as a hand lamp or placed on a magnetic surface for inspection work.

The explosion proof LED headlamp is durable and remarkably lightweight compared to other explosion proof headlamps on the market.

Why choose EX-VIEW?

• Remarkably lightweight compared to other explosion proof headlamps on the market
• The headlamp can easily be detached form the band, making it possible to use it as a small hand lamp
• Hand-free operation allowing you to operate the head lamp even with thick gloves or dirty hands
• Lightens your entire field of view
• Ergonomically designed for a comfortable fit

// The design of EX-VIEW is unique and covered by EU design patent RCD No 5597010. EX-VIEW is also protected by CN Utility Model Patent No ZL201620157968.X.

II 3G Ex ic IIC T5 Gc

II 3D Ex ic IIIC T100°C Dc IP65

// EX-VIEW is approved and certified by TÜV SÜD according to the ATEX Directive no. 2014/34/EU effective from April 2016 and according to IECEx.

ATEX certificate no. TPS 18 ATEX 054006 0014 X Rev.00

IECx certificate no. IECEx TPS 18.0017X

• Luminous Flux, Max (Lumen) - 200
• Illuminance, Max (Lux@0,5m) - 300
• Illuminance Distance (Meter) - 0.50
• Light Source - COB LED
• CCT (Kelvin) - 6000
• CRI - Ra >80
• Beam Angle Main - 110°
• Power source - Rechargeable Battery
• Battery type - Li-ion
• Battery capacity (mAh) - 1600
• Battery voltage (V) - 3.80
• Cable - 1 m USB to mini DC
• Charging input voltage (V) - 100-240V AC / 50-60Hz
• Plug type - Type C (Euro plug)
• Max Power Consumption (W) - 1.60
• Charger included - No
• Operating temperature - -10° to +45°C
• Operating time with max. lumen (hours) - 2.50
• EX Zones - 2 and 22
• Charging time (hours) - 3.50
• Ingress protection - IP65
