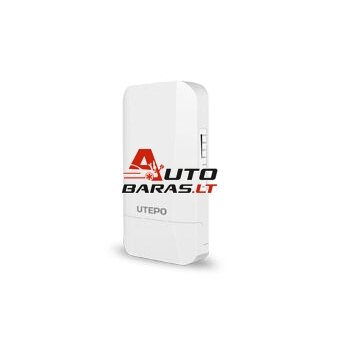

Lauko CPE UTEPO CP2-300 2.4GHz

Modelis

CP2-300

Pagrindinė mikroschema

MTK7628KN 300Mbps

Belaidė technologija

2.4G:300Mbps 802.11b/g/n MIMO

Atmintis

DDR2 8MB

Flash

4MB

Sąsaja

2*10/100 Mbps auto-sensing RJ45 ports

Mygtukas

1*Digital Switch/Reset. Value 1 added by short pressing, reset by pressing in 5s.

LED

LAN1/PoE, LAN2, PWR

Energijos suvartojimas

Passive PoE: 24V 0.5A DC 12V 1A, power consumption﹤10W

Antena

Built-in 12dBi directional antenna with dual polarization

Horizontal angle: 45 degree, vertical angle: 45 degree.

Aplinkos sąlygos

Temperature: -30℃～+55℃ (Operation), -40℃ ～+70℃ (Storage) Humidity (Non-condensing): 10％～90％ (Operation), 5％～95％(Storage)

Matmenys

200mm×115mm×60mm

Svoris

400g

Moduliacija

OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CC

Energijos išvestis

11n: @MCS7:16±2dB, @MCS0:16±2dB

11g: @54M:16±2dB, @6M:17±2dB

11b: @11M:18±2dB, @1M:18±2dB

Dažnių diapozonas

ISM: 2.300GHz ~ 2.4835GHz

Kanalai

2.4G： 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 32, 33, 37, 38, 42, 43

Jautrumas

802.11n: -70dbm@MCS7, -88dbm@MCS0 802.11g: -72dbm@54Mbps, -88dbm@6Mbps 802.11b: -85dbm@11Mbps, -94dbm@1Mbps

Veikimo rėžimai

Master AP, Slave AP (Through dial switch)

Tinklo rėžimai

Point to Point, Point to multipoint (Within 8 points)

Valdymas

WEB

Default IP: 169.254.254.254

Username/Password: utepo/utepo

Tinklas

Bridge: Static IP/ Dynamic IP
