Kabelių trumpo jungimo testeris / scaneris

  • Kraunamos nuotraukos
    Kodas: wire_short_cut_tester
    Šią prekę turime sandėlyje.
    Į krepšelį

     Kabelių trumpo jungimo testeris / scaneris

  •  Kabelių trumpo jungimo testeris / scaneris


    Su šiuo prietaisų nesunkiai rasite laidus kurie kitaip tariant "trumpina"



    Item specifics:
    Item Width:4 cm
    Material Type:coiled steel
    Item Height:15 inch
    External Testing Certification:CE
    Item Type:Electrical Testers & Test Leads
    Item Length:17 cm
    Item Weight:280 g
    Special Features:short cable finder

    1. Wire Tracing
    2. Checking for short circuit
    3. Locating open circuit
    4. Wire identification

    * Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc
    * Easy to use: simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector,in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot
    * 42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems
    * Operates on DC voltages from 6 to 42 volts
    * Internally protected against power surges and overloads
    * 7" flexible probe allows reaching wires in congested places
    * Transmitter and Receiver LEDs show open or short circuit conditions
    * Adjustable sensitivity for all tracing situations
    * No wire piercing required, non-contact technology!

    How to use the probe?
    The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions. However,for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.

    Package Includes:

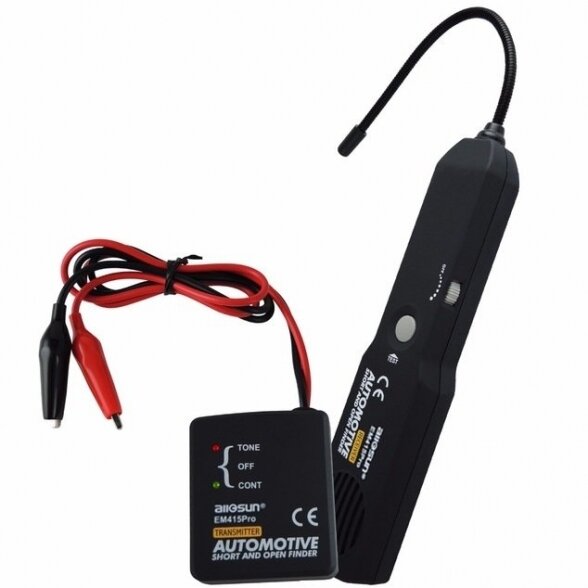

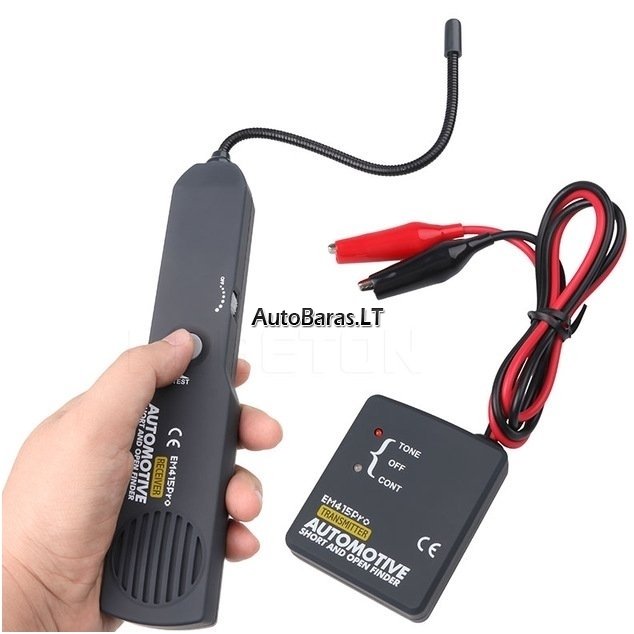

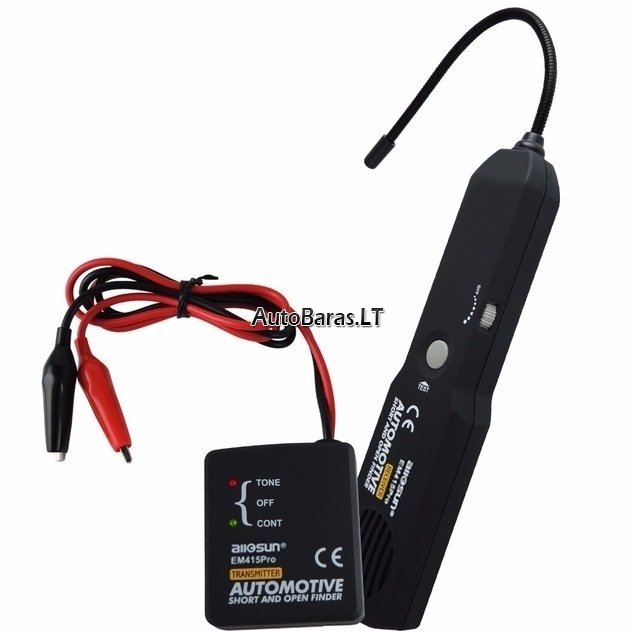

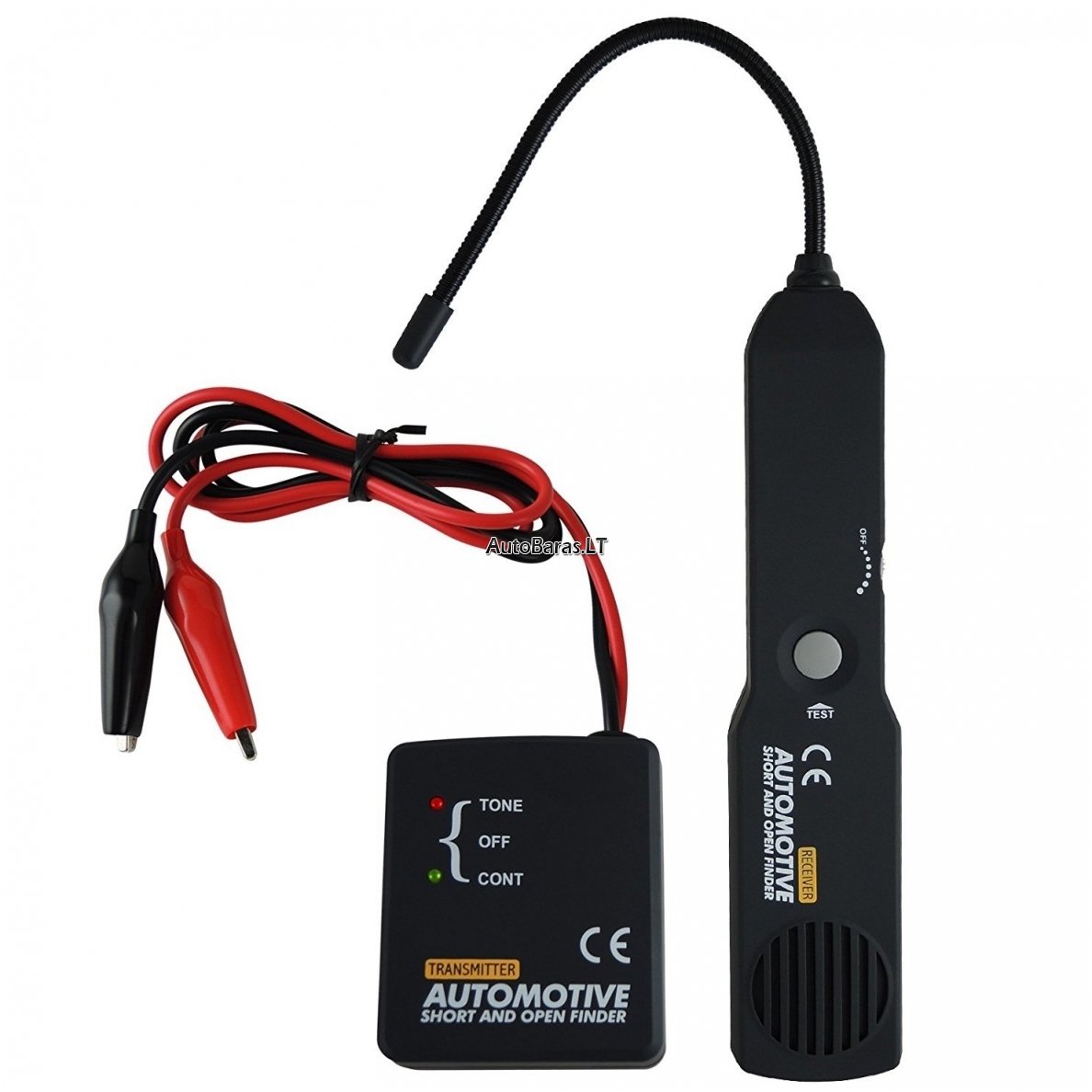

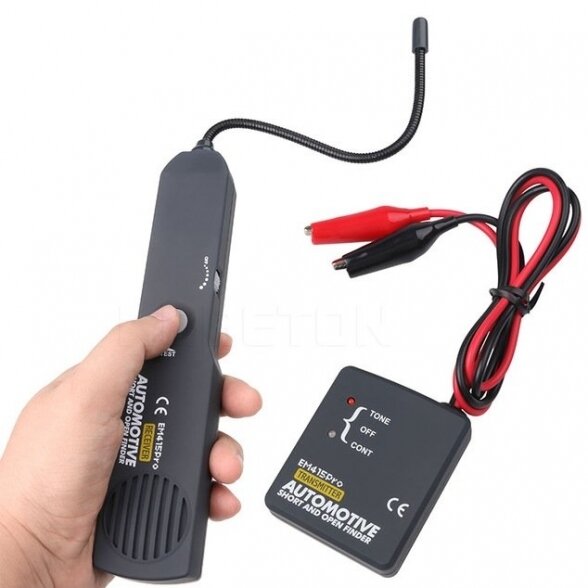

    1 x Automotive Short and Open Finder (Within a carry bag)
    1 x Instruction Manual

    Checking for short circuit,Loating open circuit,Wire identification, Wire traceing,etc.
