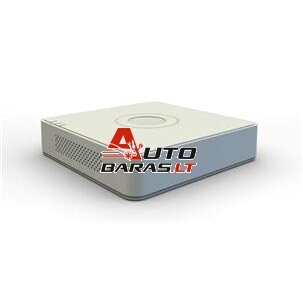

Hikvision DS-7108HQHI-K1

Model

DS-7104HQHI-K1

DS-7108HQHI-K1

DS-7116HQHI-K1

Video/Audio input

Video compression

H.265+/H.265/H.264+/H.264

Analog video input

4-ch

8-ch

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.

AHD input

1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

Support

IP video input

1-ch

2-ch

2-ch

Up to 4 MP resolution

Supports H.265+/H.265/H.264+/H.264 IP cameras

Audio compression

G.711u

Audio input/Two-way

audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

HDMI/VGA

output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Encoding resolution

When 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF

Frame rate

Main stream:

When 1080p Lite mode not enabled:

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled: 3 MP@15fps

1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps to 6 Mbps

Audio output

1-ch, RCA (Linear, 1 KΩ)

Audio bit rate

64 Kbps

Dual stream

Support

Stream type

Video, Video & Audio

Synchronous

playback

4-ch

8-ch

16-ch

Network management

Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard disk

SATA

1 SATA interface

Capacity

Up to 4 TB capacity for each

disk

Up to 6 TB capacity for each disk

External interface

Network

interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB interface

Real panel: 2 × USB 2.0

General

Power supply

12 VDC

Consumption (without HDD)

≤ 8 W

≤ 12 W

≤ 15 W

Working temperature

-10 ºC to +55 ºC (+14 ºF to +131 ºF)

Working

humidity

10% to 90%

Dimensions (W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

285 × 210 × 45 mm (11.2 ×

8.3 × 1.8 inch)

Weight

(without HDD)

≤ 1 kg (2.2 lb)
