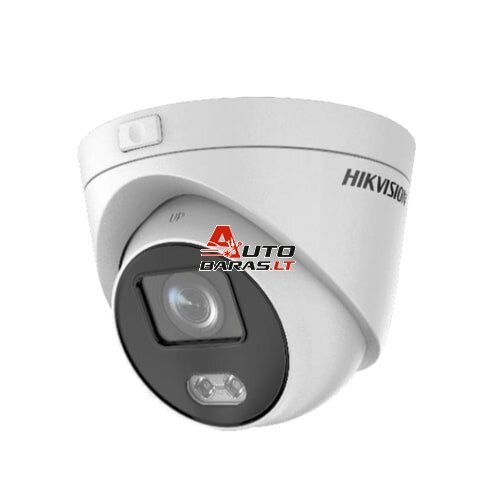

Hikvision dome DS-2CD2327G1-LU F2.8

Sensorius

1/2.8" Progressive Scan CMOS

Min. apšvietimas

0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on

Užrakto greitis

1/3 s to 1/100,000 s

Lėtas užraktas

Yes

Objektyvas

4 mm, horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 106°

Objektyvo montavimas

M16

DNR

3D DNR

Platus dinaminis diapazonas

120dB

Reguliavimas

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Vaizdo suspaudimas

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Vaizdo sparta

32 Kbps to 8 Mbps

Maks. raiška

1920 × 1080

Pagr. srautas

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Antrinis srautas

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

0Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Trečias srautas

50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

Vaizdo nustatymai

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

ROI

Support 1 fixed region for main stream

Tinklinis talpinimas

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Pavojaus signalo sukėlimas

Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protokolai

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Pagrindinės funkcijos

One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Standartai

ONVIF (PROFILE S, PROFILE G), ISAPI

Vidinė atmintis

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Veikimo sąlygos

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Maitinimas

12 VDC ± 25%, 5.5 mm coaxial power plug

PoE (802.3af, class 3)

Matomos šviesos atstumas

Warm white LEDs (3000K), up to 30m

IP apsaugos klasė

IP67

Išmatavimai

Camera: Φ130 × 103.6 mm (Φ5.1″ × 4.1″)

Svoris

Camera: 500 g (1.1 lb.)
