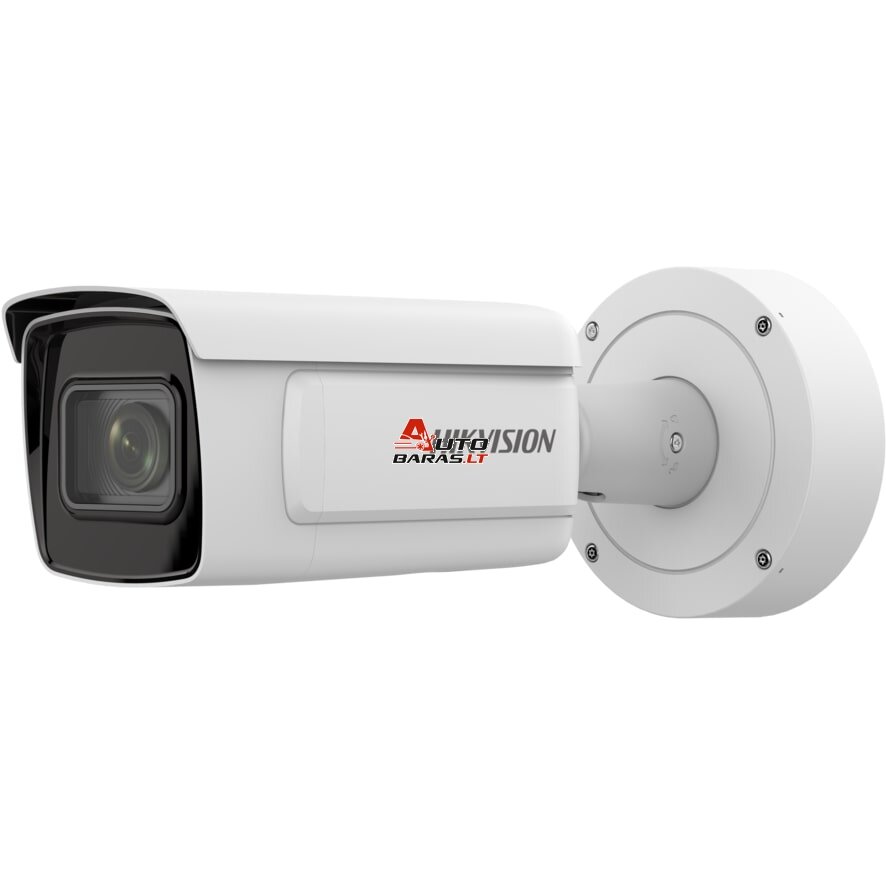

Hikvision bullet iDS-2CD7A46G0-IZHS F2.8-12
Hikvision bullet iDS-2CD7A46G0-IZHS F2.8-12
Prekės kodas: KIPIDS2CD7A46G0IZHSKaina 826.86 €Netinka kaina? Siūlyk savo!Prekės NETURIME arba ji yra UŽSAKOMA
Sužinokite parašę mums užklausą dėl sąlygų ir termino, galbūt galime užsakyti.
Jeigu prekė TIK užsakinėjama, tai sąlygos yra aprašytos žemiau prie prekės aprašymo
- 4 MP
- 2680 ×1520 raiška
- 2.8-12 mm
- 140dB WDR
- H.265+
- IR diapozonas iki 50m
- IP67
- IK10
- 5 srautai ir 5 redaguojami srautai
Gamintojas-
Prekių pristatymas/atsiėmimas
-
- Kamera
- Sensorius1/1.8″ Progressive Scan CMOS
- Min. apšvietimasColor: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
- Užsisklendimas1 s to 1/100,000 s
- Lėtas užsisklendimasYes
- P/NP/N
- Platus dinaminis apšvietimas140 dB
- Dienas & NaktisIR cut filter
- Išsijungimo atmintisYes
- Lęšiai
- FokusavimasAuto, semi-auto, manual
-
Lęšių tipai & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3
-
Diafragma
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- Lęšių montavimasIntegrated
- Mėlyno stiklo modulisBlue glass module to reduce ghost phenomenon.
- P-IrisYes
- Apšvietimas
-
IR diapozonas
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
- Bangų ilgis850 nm
- Išmani pagalbinė šviesaYes
- Video
- Maks. raiška2680 ×1520
-
Pagrindinis srautas
50Hz: 25fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
-
Pagalbinis srautas
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
-
Tretinis srautas
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
Ketvirtas srautas
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
Penktas srautas
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
-
Redaguojamas srautas
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- H.264+Main Stream supports
- H.265+Main Stream supports
- Bitų dažnių dažnisCBR/VBR
- Srauto tipaiMain stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
- SVCH.265 and H.264 support
- ROI4 fixed regions for each stream
- Garsas
- Aplinkos triukšmo filtravimas Yes
- Garo pavyzdžių ėmimo greitis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Garso bitų greitis64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
- Garso tipasMono sound
- Tinklas
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Sklandus srautasYes
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- ApsaugaPassword protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log，TLS 1.2
-
Tinklo saugykla
microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200, Hik-Connect, Hik-Central
-
Interneto naršyklės
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Išmanus IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
- Dienos/Nakties jungiklisDay, Night, Auto, Schedule, Triggered by Alarm In
- Elementų išrinkimasYes
- Paveikslėlio perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Vaizdo gerinimasBLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
- Vaizdo nustatymų jungiklisYes
- Vaizdo nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR≥52 dB
- Sąsaja
- Signalizacija 2 input, 2 outputs (max. 24 VDC, 1 A)
-
Garsas
Without -R:
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- RS-485With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Vaizdo išvestis1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)
- Vidinė apsaugaBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Apratinės įrangos atkūrimasYes
- Bendravimo sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Energijos išvestisWith -Y: 12 VDC, max. 200 mA (supported by all power supply types)
- ŠildymasYes
- Funkcijos
- Paprastos funkcijos Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
-
Išmanios funkcijos
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Scene change detection, audio exception detection, defocus detection
- SkaičiavimasYes
- Gilaus mokymosi funkcija
-
Veido atpažinimas
Detects up to 30 faces simultaneously;
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;
Up to 3 face libraries with up to 30000 faces each are configurable;
Recognizes face identity via face modeling, grading and comparing to those in face library;
Supports face library encryption.
-
Skirtingų elementų vienu metu atpažinimas
Supports simultaneous detection of human body and face
Gets 8 face features and 13 human body features
-
Veidų skaičiavimas
Supports entering/exiting counting (track 30 targets simultaneously);
Supports facial recognition;
Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);
Supports reporting alarms when detecting the face is the same as that in the face library.
-
Šalmų aptikimas
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions
-
Eilių analizavimas
Detects queuing-up people number, and waiting time of each person
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
-
Premier apsauga
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
- Pagrindinis
-
Sujungimo metodai
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
- Internetiniai atnaujinimaiYes
- Dvigubas apsauginės kopijos išsaugojimasYes
- Programinės-aparatinės įrangos versijaV5.5.121
-
Internetinio meniu kalbos
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
- Pagrindinės funkcijosAnti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
- Programinės įrangos atkūrimasYes
- Laikymo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Paleidimo ir veikimo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Energijos šaltinis12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE：802.3at, Type 2 Class 4
-
Energijos suvartojimas ir srovė
12 VDC, 1.33 A, max. 16.0 W
PoE: (802.3at, 42.5V-57V), 0.43 A to 0.31 A, max. 18.0 W
- Energijos gavimo sąsajaThree-core terminal block
- Varžtų medžiagaWith –Y: SUS316, without –Y: SUS304
-
Kameros matmenys
Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
- Pakuotės matmenys405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
- Kameros svoris1920 g (4.2 lb.)
- Svoris su pakuote3060 g (6.7 lb.)
- Meta duomenys
- Meta duomenysMetadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
- Certifikatai
- KlasėClass B
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SaugumasUL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1:2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2:2013); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1)
- AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ApsaugaIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Geležinkelių standartaiWith -R: EN50121-4
- Korozijos standartaiWith -Y: NEMA 4X(NEMA 250-2018)
- KitiWith -Y: PVC FREE
