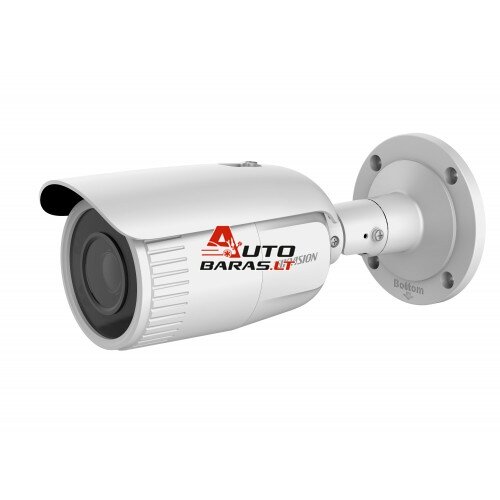

Hikvision bullet DS-2CD1643G0-IZ F2.8-12

Sensorius

1/3" Progressive Scan CMOS

Min. apšvietimas

Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)

Užrakto greitis

1/3 s to 1/100, 000 s, support slow shutter

Objektyvas

2.8 to 12 mm

FOV

Horizontal field of view: 98° to 28° Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32°

Fokusavimas

Auto

Objektyvo montavimas

Φ14

Diena / naktis

IR cut filter

Reguliavimas

Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Skaitmeninis triukšmo slopinimas

3D DNR

Platus dinaminis diapazonas

120dB

Vaizdo suspaudimas

Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG

H.264 tipas

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 tipas

Main Profile

H.265+

Main stream supports

Vaizdo sparta

32 Kbps to 8 Mbps

Maks. raiška

2560 × 1440

Pagrindinio srauto kadrai per sek.

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Antrinio srauto kadrai per sek.

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Vaizdo nustatymai

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Dienos / nakties perjungimas

Auto, scheduled

Tinklinis talpinimas

Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR

Pavojaus signalo sukėlimas

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login

Protokolai

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Pagrindinės fukcijos

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Ryšio sąsaja

1 RJ45 10M/100M self-adaptive Ethernet port

Reset mygtukas

Yes

Veikimo sąlygos

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Maitinimas

12 VDC ± 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Energijos suvartojimas

12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W

IP apsaugos klasė

IP67

IR apšvietimas

Up to 30 m

Išmatavimai

Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6")

Svoris

Camera: approx. 1035 g (2.3 lb.) With package: approx. 1550 g (3.4 lb.)
