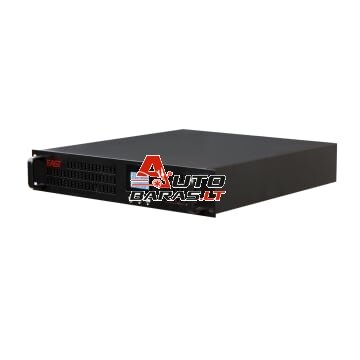

EAST EA901P RACK UPS 1000VA LCD

MODELIS

EA901P

EA902P

EA903P

Talpa

1 kVA/900 W

2 kVA/1800 W

3 kVA/2700 W

Įvestis

Įtampa

208 / 220 / 230 / 240 Vac

Įtampos diapazonas

110 ~ 176 Vac (linear derating between 50% and 100% load );

176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)

Dažnis

40 ~ 70 Hz (auto-sensing)

Galios faktorius

≥ 0.99

Šunto įtampa

-25% ~ +15% (settable)

Harmonikų iškraipymai (THDi)

≤ 6%

IŠVESTIS

Įtampa

208 / 220 / 230 / 240 Vac (settable via LCD)

Įtampos reguliavimas

± 1%

Dažnis

45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode)

Bangos forma

Sinusoidal

Galios faktorius

0.9

Harmonikų iškraipymai (THDv)

≤ 2% (linear load), ≤ 5% (non-linear load)

Keteros faktorius

3:1

Perkrova

105% ~ 125% for 1 min, 125% ~ 150% for 30 s, > 150% for 300 ms

BATERIJOS

DC įtampa

24 V (S)

36 V (S)

24/36 V

(H)

48 V

(S)

72 V

(S)

48/72 V (H)

72 V

(S)

96 V

(S)

72/96 V (H)

Įmontuota baterija

2×9 Ah

3×7 Ah

/

4×9 Ah

6×7 Ah

/

6×9 Ah

8×7 Ah

/

Pakrovimo srovė (maks.)

1 A

6 A

1 A

6 A

1 A

6 A

Perkrovimo laikas

Standard model: 90% capacity restored in 3 hours;

Long time model: depend on the capacity of battery

SISTEMA

Efektyvumas

≥ 90% (Mains mode)

≥ 91% (Mains mode)

≥ 92% (Mains mode)

≥ 85% (Battery mode)

≥ 86% (Battery mode)

≥ 87% (Battery mode)

≥ 95% (ECO mode)

≥ 96% (ECO mode)

≥ 97% (ECO mode)

Perėjimo laikas

Mains mode to battery mode: 0 ms

Inverter mode to bypass mode: 4 ms (typical)

Apsaugos

Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection

Ryšiai

RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)

Monitorius

LCD + LED

Standartai

EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1, IEC 62040-3

KITI

Darbo temeratūra

0℃ ~ 40℃

Saugyklos temperatūra

-25°C ~ 55°C (without batteries)

Drėgmė

0 ~ 95% (non-condensing)

Aukštis

≤ 1000 m, derating 1% for each additional 100 m

IP apsaugos lygis

IP 20

Triukšmas 1 m

≤ 50 dB

Matmenys (P × G × A) (mm)

144 × 336 × 214

144 × 414 × 214

144 × 336 × 214

191 × 418 × 335

191 × 464 × 335

191 × 418 × 335

Pakuotės matmenys (W × D × H) (mm)

232 × 417 × 318

230 × 492 × 320

232 × 417 × 318

277 × 500 × 435

320 × 573 × 472

277 × 500 × 435

Net svoris (kg)

9.5

13

6

18

25.7

10.5

27.2

32

11

Gross svoris (kg)

10.5

14.2

7

19.5

27.4

12

29

34

12.5
