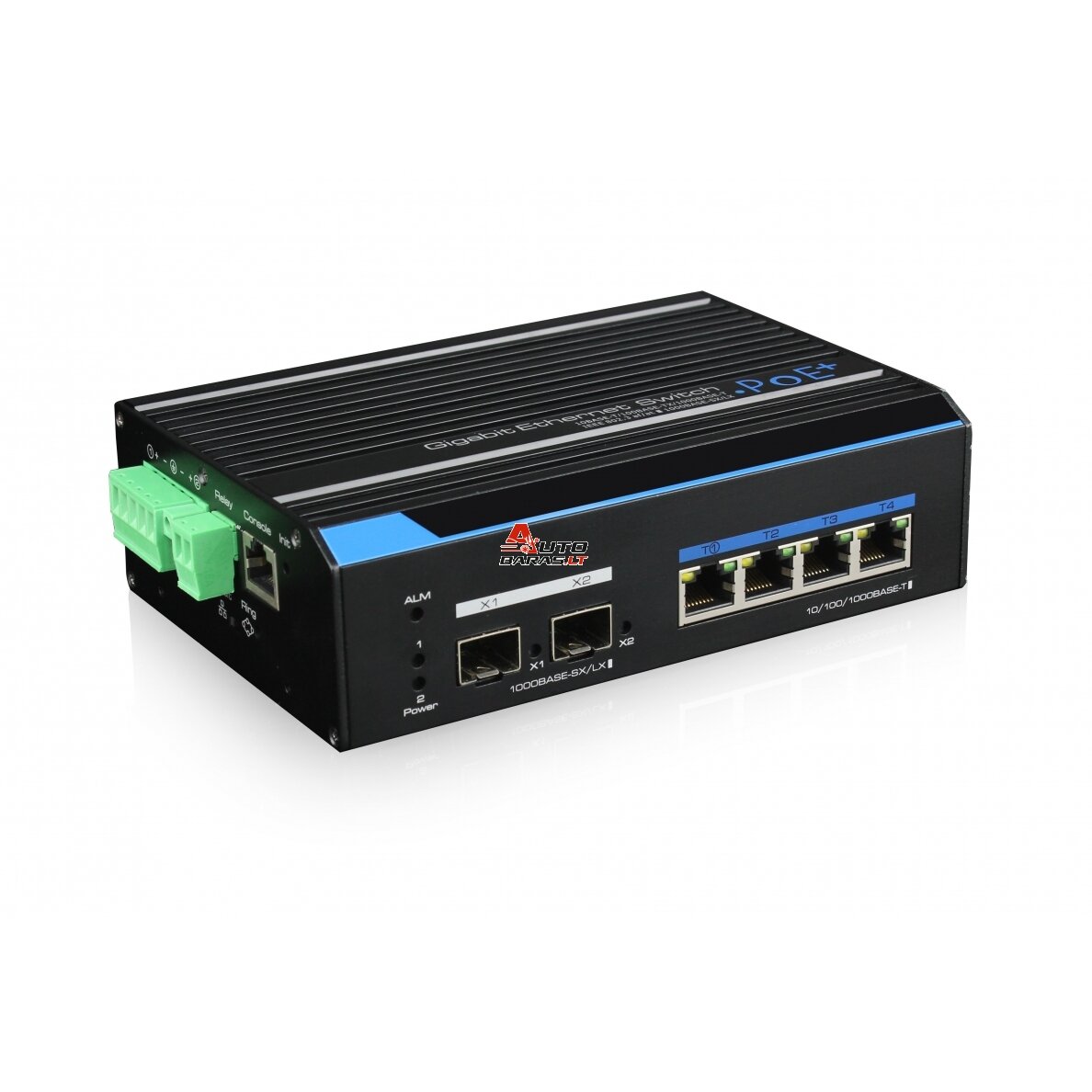

6 prievadų, 4 PoE prievadų pramoninis komutatorius UTEPO UTP7304GE-POE 150W

Modelis

UTP7304GE-POE

Energijos įvestis

5pin green terminal, 2 groups DC input (reduntant power), 1 grounding terminal. Input power range:DC48V~57V

Energijos suvartojimas

Self comsumtion< 20W

Variniai prievadai

4* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

SFP prievadai

2*1000 Base-X SFP(Mini-GBIC)

Konsolės prievadai

1*RJ45-R232 serial port(115200,8,N,1)

Init mygtukas

Short press:restart.

>5s restore factory settings

Vienas paspaudimas, greitas skambutis

Default mode: No ring(can setup on web management).

Ring mode: Fast ring with SFP X1 and X2

Persiuntimo signalizacija

Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

Standartai ir protokolai

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

Perkėlimo pajėgumas

24Gbps

Paketų perkėlimo greitis

8.9Mpps

Perkėlimo rėžimai

Store and Forward

Paketų buferis

4Mbit

MAC adresų lentelė

8K MAC address table with auto learning function

Jumbo kadras

10K bytes

PoE standartai

T1 HPoE 60W max(also support 802.3af/at) ,T2～T4 802.3af/at 30W max

PoE linijų pora

T1:1/2(+),3/6(-).4/5(+),7/8(-)

T2～T4:1/2(+),3/6(-) end-span

EMI

FCC Part 15,CISPR(EN55022) class A

EMC

Surge level-4 IEC61000-4-5

ESD level-4 (8KV/10KV) IEC61000-4-2

RS level-4 IEC61000-4-3

EFT level-4 IEC61000-4-4

CS level-3 IEC61000-4-6

M/S level-5 IEC61000-4-8

Veikimo temperatūra

-40-75℃

Laikymo temperatūra

-40-85℃

Atsparumas drėgmei

5%-95%(Non-condensing)

Matmenys（L×W×H）

159mm×110mm×46.5mm

Svoris

1.5kg

Instaliacija

On desk.Din-rail.Wall hung

MTBF

330000 Hour

Ingress apsauga

IP40

Certifikatai

CE, FCC, ROHS

Programinės įrangos parametrai

Prievadų valdymas

Support Port Enable/Disable.

Support Port Rate Settings.

Support Port Full-duplex Mode.

Support IEEE802.3x Flow Control.

Support Port Name Change.

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN.

Support Port-Based VLAN.

QoS

Support QoS.

Support 8-Level Priority management for switching.

Support WRR.

Support 820.1P and DSCP Priority.

Peržiurų valdymas

Support SNMP V1/V2/V3 Protocol.

Support IGMP Snooping.

POE valdymas

Support Total Power Consumption Control.

Support PoE ON/OFF.

Support Single Port 60W max. Power Change and Port Output Priority.

Alarm signalo išvestis

Support relay alarm for power off, ports network link-off , ports PoE off

Apsauga

Support IP, MAC, Port, VLAN Combination and Binding.

Support MAC address auto-learning, aging& filter.

Support Port Isolation, Port Speed-Limited.

Support RSTP.

Support Fast-Ring.

Support 5 groups of 8-Port trunk.

Support RADIUS Authentication& 802.1X Authentication.

Sistemos valdymas

Support WEB Management, CLR Settings and telnet Settings.

Support CLR Settings.

Support FTP/TFTP/HTTP Web Upgrading.

Support Flow Calculate.

Support MAC address Form Search.

Support IP Address, DNS Server Change

Support Username & Password Change.

Support History Record, Journal management.

Support System settings Backup.
