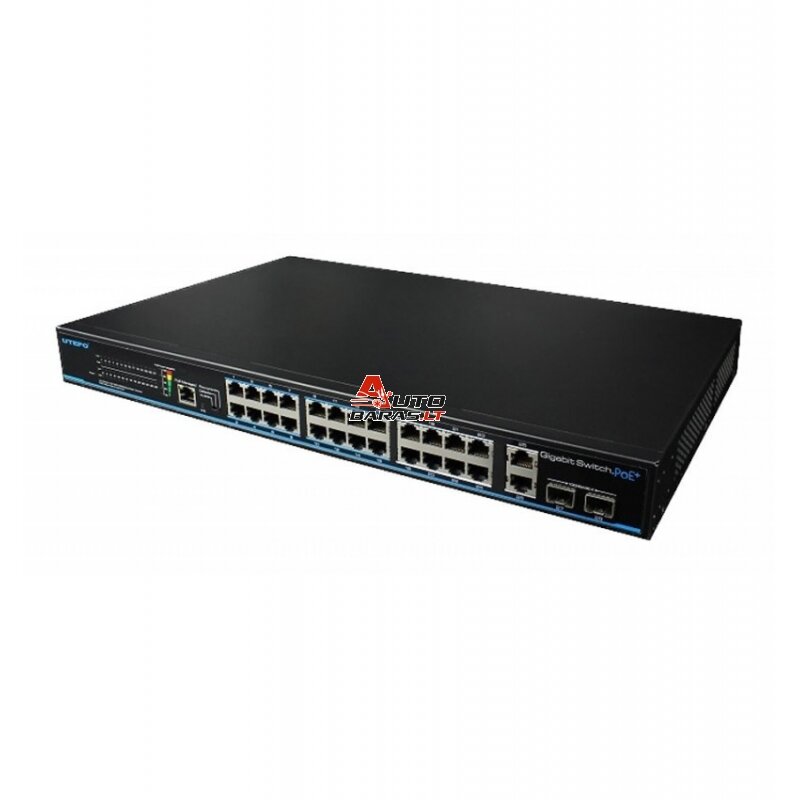

24 prievadų, 24 PoE komutatorius UTEPO UTP3-GSW2404-TSP420

Item

Description

Product Type

Product Type

420W

Port

Description

Downlink Ethernet Ports

24*10/100/1000BASE-T(24 PoE+)

Uplink Ethernet Ports

2*10 100 1000Base-T+2*1000Base X(SFP)

Power Input

1×AC Female Terminal

Grounding Terminal

1×Grounding Terminal

PoE&Power

Power Input

Mains on load,100～240VAC 50/60Hz

PoE Power Supply

Type&Standard

End-span(1/2，3/6),IEEE802.3 af/at

PoE Max. Power Output

390W

Single Port Power Output&

Voltage

Single Port PoE Power Output≤30W, Voltage 54VDC

PoE Web

Management

PoE Management

Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output

Reset Button

PoE Web Reset

Long-press 3s, all Link LED solid on about 10s, switch reset to factory default; short-press to restart.

One-key Mode

VLAN

1. Downlink ports only communicate with uplink ports;

2. Restrain network storm under 2Mbps

Default

All ports can communicate with each othe

Flow control

Switch flow control function is turned off, this mode is suitable for video surveillance transmission

Network

Parameters

Network Standard

IEEE 802.3,IEEE 802.3u,IEEE 802.3ab, IEEE 802.3z

Transmission Distance

100m(Max.)

Exchange Capacity

52Gbps

Packet Transfer Rate

38Mpps

MAC Address

8K

Packet Data Cache

4Mb

Indicators

Status

Power Input

1x Red LED

Downlink Ethernet Ports

Link:24x Green LED

PoE 24x Yellow LED

Uplink Ethernet Port Link

4x Green LED

PoE Power Output Percent

5x LED(Including 3x Green, 1x Yellow, 1x Red), separately indicate

30%、60% ～100%

Protection

Level

ESD

6KV 8KV, Per:IEC61000 4 2

Surge Protection

6KV, Per:IEC61000-4-5

Operation

Environment

Operation Temperature

0 ℃～45 ℃

Storage Temperature

-40 ℃～85 ℃

Humidity(Non-condensing)

0～95%

Mechanics

Dimensions(LxWxH)

442 *285 *44.5 mm mm mm

Material

Iron

Color

Black
