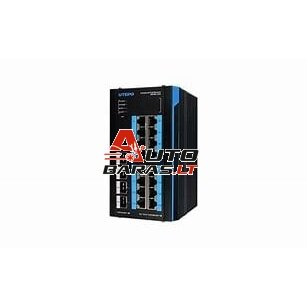

20 prievadų, 16 PoE prievadų komutatorius UTEPO UTP7616GE-POE-IE

Modelis

UTP7616GE-POE-IE

Etherneto prievadai

Variniai prievadai

16*10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

SFP prievadai

4*1000M/10G Base-X SFP(Mini-GBIC)

Konsolės prievadai

1*RJ45-R232 serial port (115200,8,N,1)

PoE

PoE standartai

IEEE 802.3af/at (PSE)

PoE energijos šaltinio tipas

End-span

PoE pin priskyrimas

1/2(+)，3/6(-)

PoE energijos išvestis

46~55V DC

PoE galia

30W max for each port, 360W max

Keitimo savybės

Standartai

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1x

Perkėlimo rėžimai

Store and Forward

Paketų buferis

12Mbit

MAC lentelė

16k, supported auto learning

Keitimo pajėgumas

112Gbps / non-blocking

Paketų perkėlimo greitis

83.3Mpps

Jumbo kadras

9kB

Energijos šaltinis

Įvesties įtampa

Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC

Energijos suvartojimas

380W (Including PoE)

Atsakomybės

Atsparumas įtampai

6kV, Standard: IEC6000-4-5

ESD apsauga

8kV Contact Discharge,15kV Air Discharge, Standard: IEC61000-4-2

MTBF

295040h

MTBF Standartai

Telcordia SR-332，25℃

Apsaugos lygis

IP40

Veikimo temperatūra

-40℃~75℃

Laikymo temperatūra

-40℃~85℃

Atsparumas drėgmei

0~95% (Non-condensation)

Fiziniai parametrai

Led lemputės

PWR1: Main Power Supply Indicator
PWR2: Redundant Power Supply Indicator
SYS: System Working Indicator
ALM: Alarm Indicator

Init mygtukas

Long press ＞5s to initialise the system

Matmenys (W*D*H)

163mm*110mm*95.6mm

Bruto svoris

2010g±15g

Grynasis svoris

1730g±15g

Medžiaga

Aluminum

Įdiegimas

DIN-rail or wall mounted

Certifikatai

Certifikatai

CE, FCC, RoHS

Programinės įrangos parametrai

Sistemos būklė

Systemos statusas

Device Name
MAC Address
Firmware Version
Hardware Version
System Time
Update Time
Memory Information
CPU Information

Eismo statistika

Sent Frame Statistics
Received Frame Statistics

MAC adresų lentelė

MAC Address Table
Sort Type

Prievadų nustatymų keitimas

Prievadų nustatymai

Port State
Port Speed
Duplex Mode
Traffic Control
Port Range

Greičio limitas

Enable and Disable
Port Range
Input Speed Limit
Output Speed Limit

Trikdžių kontrolė

Port Range
Broadcast Storm
Multicast Storm
Unknown Unicast Storm

Port atskyrimas

Port Isolation Or Normal
Port Range

PoE nustatymai

Power Setting
Power Status
Port Status and Control

Etherneto jungiklis

Jungčių agregacija

Aggregated Load Pattern Setting
Trunk Name
Aggregation Pattern Setting
Port Range

802.1Q VLAN

Port Range
Link Type
PVID
VLAN-allowed
VLAN-untagged

802.1P QoS

Enable and Disable
QoS Priority
802.1p QoS Setting
802.1p Mark Range
802.1p Priority

IP paslaugos

IP sąsaja

Network Interface(VID)
Static IP
IPv4 Address
IPv6 Address

DHCP serveris

Client Lease Time
Preferred DNS Address
Backup DNS Address
WINS Server
Network Interface(VID)
Default Gateway
Start IP Address
Max Client Number

IP perkėlimas

RIP

Enable and Disable
Protocol Type
Network Interface

OSPF

Enable and Disable
OSPF Host ID
Region ID
Region Type
Network Interface

Perkėlimo lentelė

Target Network
Next Hop Address
Path Consumption

IP daugiaadresis transliavimas

IGMP snooping

Enable and Disable
IGMP Query
IGMP Query Interval
Group Member Alive Time

Apsauga

Statinio adreso užrakinimas

Enable and Disable
MAC Address, VLAN ID, Port

Atsakomybė

Greitas išsišakojimas

Enable and Disable
STP Version
Device Priority
Message Sending Period
Message Maximum Lifetime
Port State Transition Delay
This Bridge Update Message
Modify Configuration

Fast-Ring apsauga

Enable and Disable
Fast-Ring Network Group 1
Fast-Ring Network Group 2

Loopback apsauga

Enable and Disable
Protect Automatic Recovery
Disable Loop Port Time
Port Range
Port Loop Detection

VRRP nustatymai

VRID
VLAN Interface
Priority
Preemption Mode
Preemption Delay
Authentication Method
Authentication Word
Virtual IP

Alarm valdymas

Alarm transliuotojas

Power Supply
Port Network
Port PoE

Sistemos valdymas

Prievadų kopijavimas

Enable and Disable
Monitor Port
Mirror Port Range
Collect Data

SNMP

Enable and Disable
SNMP Gateway
SNMP Version
Read-only Group Name
Read and Write Group Name
SNMP V3: User Name, Read And Write Mode
Identity Authentication, Verify Password,
Encryption Protocol, Encryption Password

Laikas

Local Time
World Time Zone
Automatically Adjust Daylight Saving Time
Using NTP
NTP Sever
System Time
PC Time

SysLog

Enable and Disable
Show Type
Information Processing

Valdymas

Restore Factory Value
System Reboot
Download Configuration File
Upload Configuration File
System Upgrade

Vartotojo nustatymai

Access Privilege
Username
Change Password
